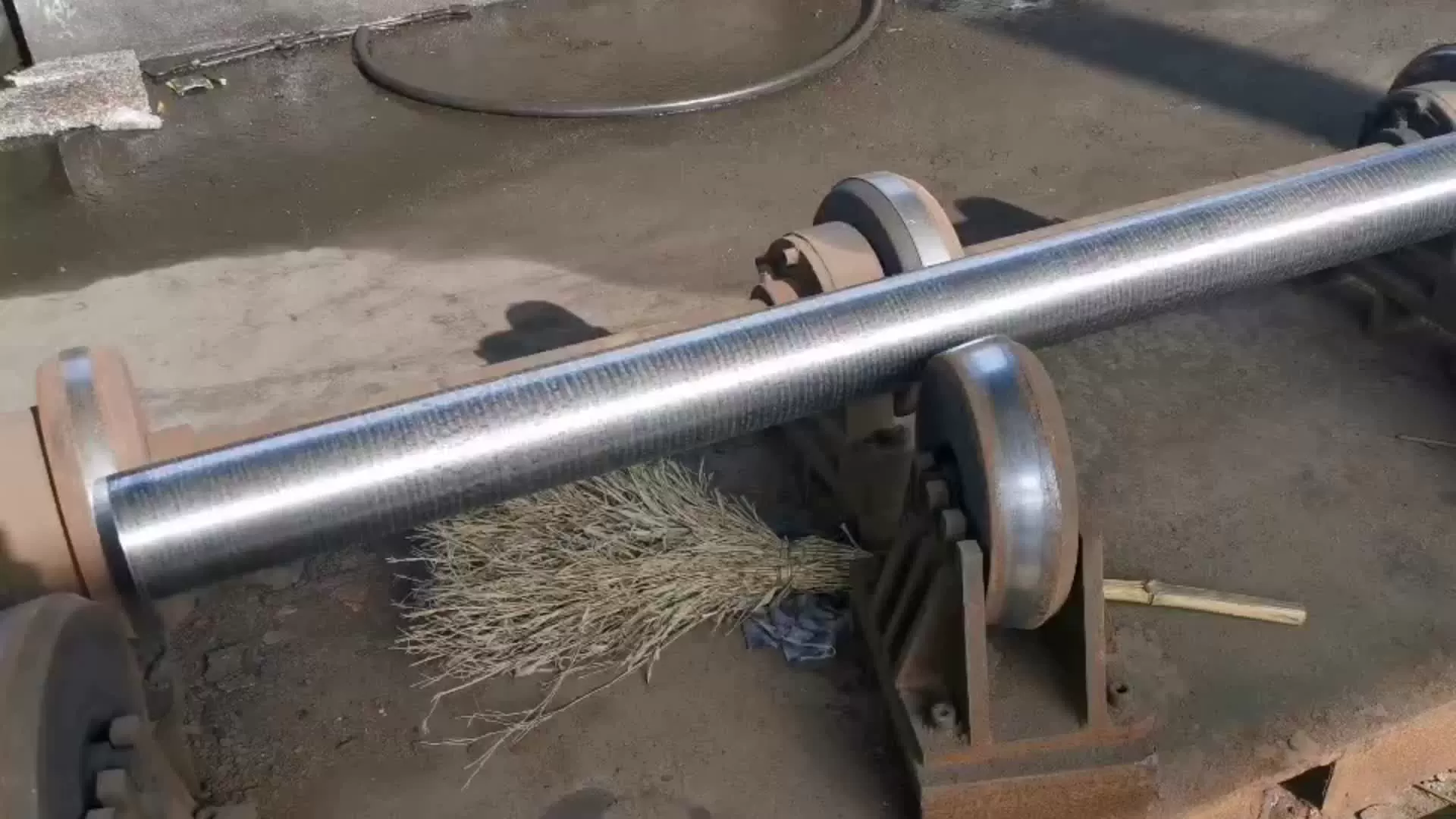

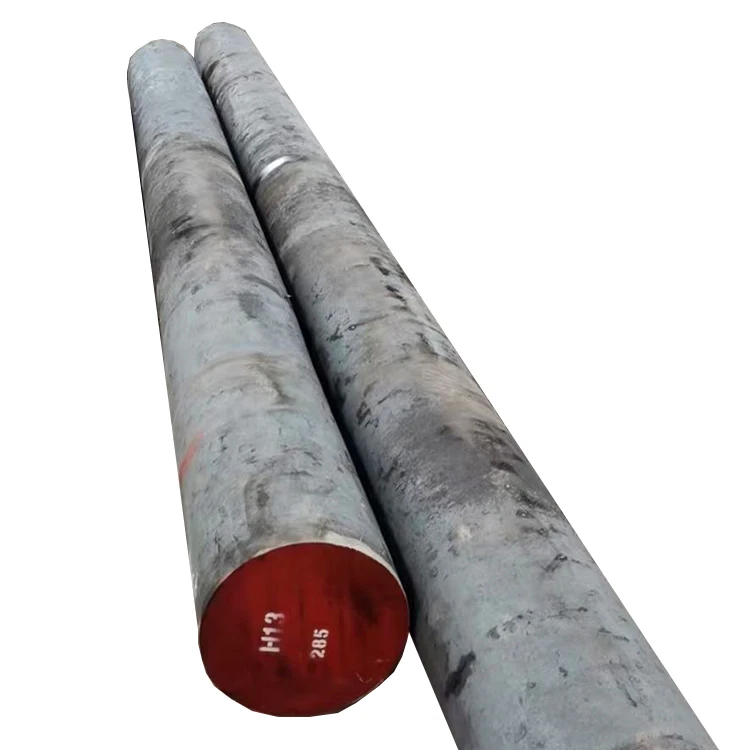

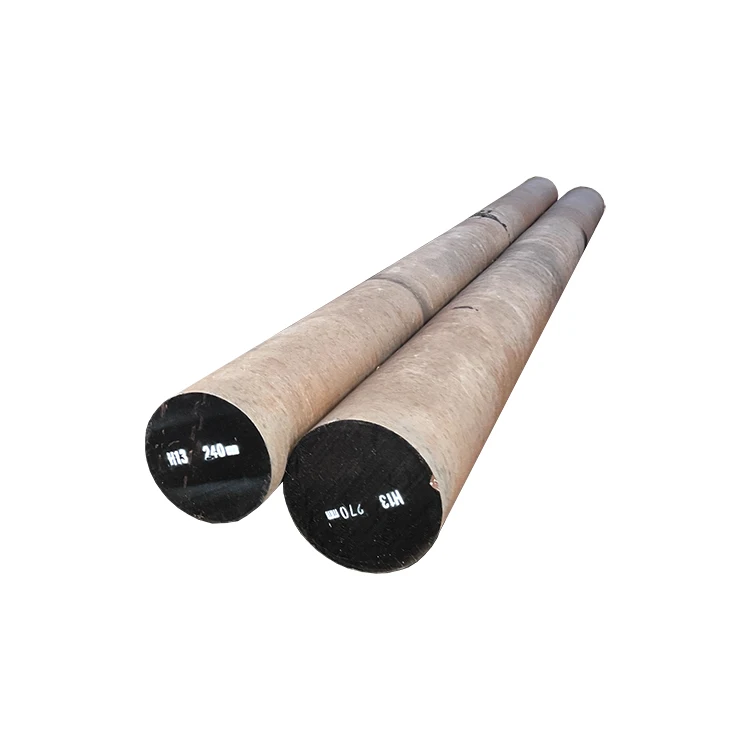

Quality Certification GB 50CrVA JIS SUP10 Cold Drawn Steel Round Bar
1: GB 50CrVA steel introduction
AISI 6150 steel is chromium vanadium type spring steel. It's a similar alloy steel to 5150 steel with small, but effective, vanadium addition, to import greater hardness. AISI steel 6150 has low distortion properties and is easily heat treated. The SAE 6150 steel grade is suitable for oil hardening and tempering.
2: GB 50CrVA Steel equivalent
| Country | Japan | BS | China | USA |
| Standard | JIS G4801 | EN 10083 | GB/T 3077 | ASTM A29 |
| Grade | SUP10 | 1.8159/51CrV4 | EN31/535A99 | 6150 |
3: GB 50CrVA steel chemical composition
| Grade | C | Si | Mn | P | S | Cr | V | Ni |
| 6150 | 0.48-0.53 | 0.15-0.35 | 0.7-0.9 | 0.035 | 0.040 | 0.8-1.1 | 0.15 | / |
| 1.8159 | 0.47-0.55 | 0.4 | 0.7-1.1 | 0.025 | 0.025 | 0.9-1.2 | 0.1-0.25 | / |
| SUP10 | 0.47-0.55 | 0.15-0.35 | 0.65-0.95 | 0.030 | 0.030 | 0.8-1.1 | 0.15-0.25 | / |
| 50CrVA | 0.47-0.54 | 0.17-0.37 | 0.5-0.8 | 0.030 | 0.030 | 0.8-1.1 | 0.1-0.2 | / |
4: GB 50CrVA steel mechanical properties
The mechanical properties mainly include tensile strength, yield strength, elongation, area or reduction, hardness, impact value, non-metalic inclusion etc. Different heat treatment, the mechanical properties will be different, such as normalized, tempered, QT. If you want to know the properties, kindly contact the salesman.
5: GB 50CrVA steel overviews
| Size | Round | Dia 6-1200mm |
| Plate/Flat/Block | Thickness 6mm-500mm | |
| Width 20mm-1000mm | ||
| Heat treatment | Normalized ; Annealed ; Quenched ; Tempered | |
| Surface condition | Black; Peeled; Polished; Machined; Grinded; Turned; Milled | |
| Delivery condition | Forged; Hot rolled; Cold drawn | |
| Test | Tensile strength, Yield strength, elongation, area of reduction, impact value, hardness, grain size, ultrasonic test, US inspection, magnetic particle testing, etc. | |
| Payment terms | T/T;L/C;/Money gram/ Paypal | |
| Trade terms | FOB; CIF; C&F; etc.. | |
| Delivery time | 30-45 days | |
| Application | 6150 spring steels are used for heavily stressed machinery parts including shafts, gears, pinions and also in hand tool components. ASTM 6150 steel is also widely in the motor vehicle industry AISI 6150 is suitable for many general engineering applications that require high tensile strength and toughness | |
6. GB 50CrVA Steel Heat Treatment
Preheat:
1200-1250F (650-675oC), equalize.
Annealing:
1100-1300F (595-740oC), hold 2 hours, air cool. As with 5150 alloy, the microstructure for this 6150 alloy steel to give optimum machinability is one of coarse lamellar pearlite to coarse spheroidite.
Normalizing:
A nominal normalizing temperature for the 6150 spring steel is 1650oF (900oC.) This treatment is followed by air cooling.
Straightening:
Best done warm 400-800F (205-425oC).
High Heat:
1550-1650F (845-900oC), soak 10 to 30 minutes. For vacuum hardening, use the high side of the high heat range and soak times.
Quenching:
Oil quench to hand warm, 150F (65oC). Temper SAE 6150 steel immediately. Note vacuum furnaces must have oil quench capability.
Tempering:
Tempering at 400-1200 (205-650oC) for 1 hour per inch (25mm) of thickness at temperature is recommended. (2 hours min.). Air cool to room temperature. Tempering of the AISI 6150 grade steel will be between 400-600°C for most applications.
7: Delivery condition
For hot rolled bar, usually the delivery condition is hot rolled, annealed, Black surface.
For hot rolled sheet, usually the delivery conditon is hot rolled, annealed, black surface.

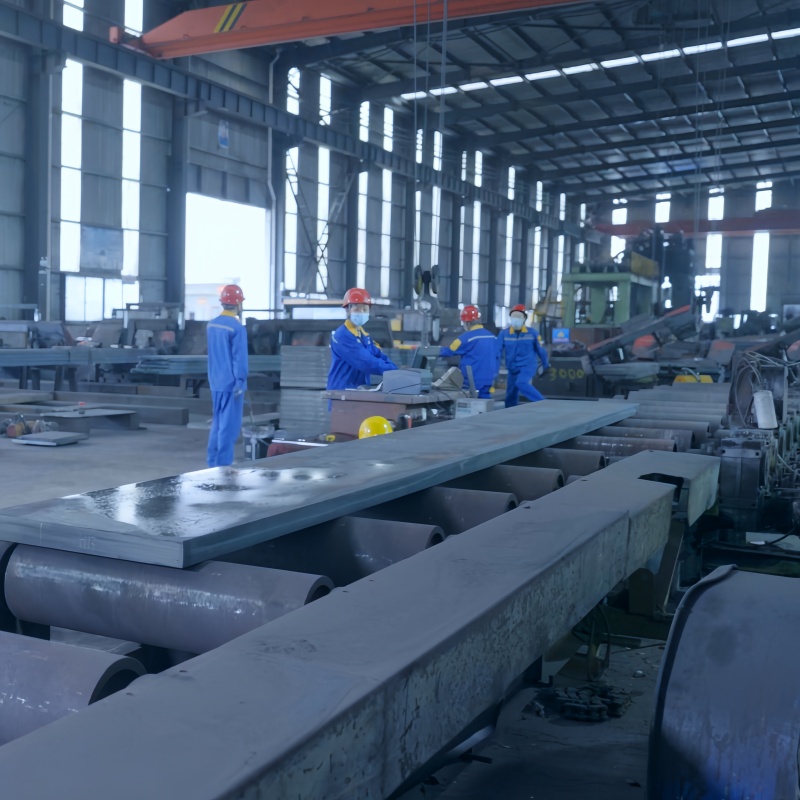

We are professional manufacturer for many years. we can provide a wide range of steel products.
Usually bundling for large diameter,small diameter bars in bulk or as customer's demand.
The hardness after heat treatment is higher than D2/1.2379/Cr12Mo1V1, and can reach 61-63HRC after high-temperature tempering (525 ± 5 ℃); In terms of strength and wear resistance, it exceeds Cr12Mo1V1, and its toughness is higher than D2/1.2379/Cr12Mo1V1; The manufactured molds rarely have cracks and fissures, greatly improving their service life; The residual stress after wire cutting processing is smaller than that of Cr12Mo1V1; The cutting and grinding performance exceeds Cr12Mo1V1.
Suitable for manufacturing precision punching dies and stamping dies for cold forging, deep drawing, and wire rolling for wire cutting processing.
