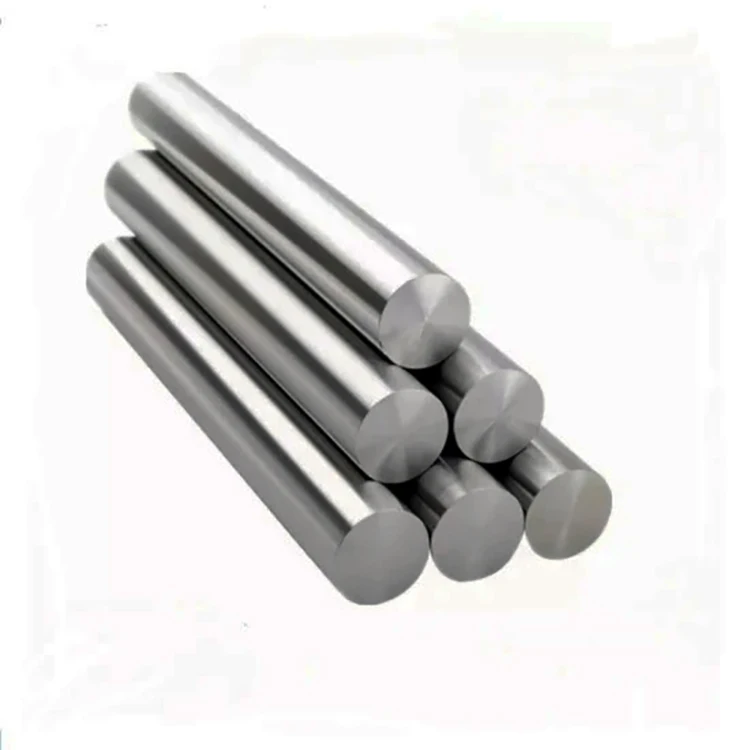

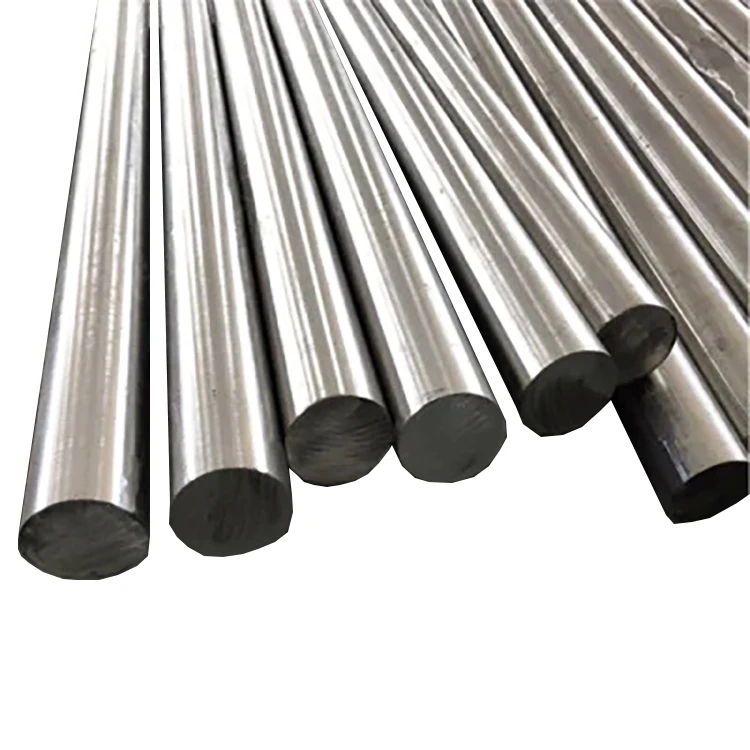

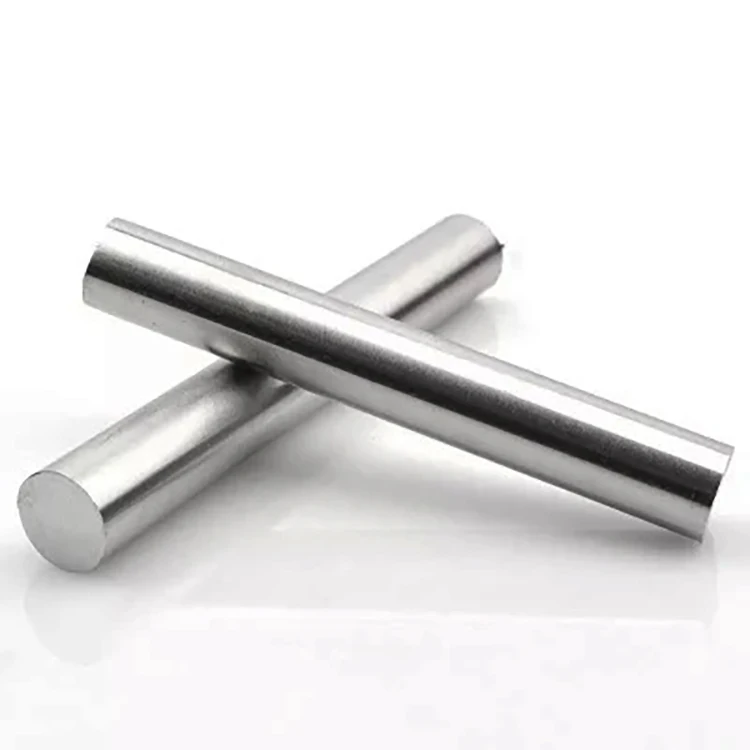

High Performance DIN 1.4028 GB 3Cr13 JIS SUS420J2 Stainless Steel Round Bar
1: DIN 1.4028 steel introduction
1.4028 belongs to European standard martensitic stainless steel, which has good machinability and excellent corrosion resistance after heat treatment (quenching and tempering), polishing performance and high strength and wear resistance. Suitable for the manufacture of high load, high wear resistance and corrosion media in the role of plastic mold. The 1.4028 material with hardness below HRC30 after quenching and tempering has better processability and can easily achieve better surface quality. When the hardness is higher than HRC30, the surface quality of the machined parts is better, but the tool is easy to wear.
2: DIN 1.4028 Steel equivalent
| Country | Japan | Germany | USA | China |
| Standard | JIS | DIN(W-Nr.) | ASTM | GB/T |
| Grade | SUS420J2 | X30Cr13 / 1.4028 | / | 3Cr13 |
3: DIN 1.4028 chemical composition
| Grade | C | Si≤ | Mn | P≤ | S≤ | Cr | Ni |
| X30Cr13 / 1.4028 | 0.26-0.35 | 1.00 | 1.50 | 0.04 | 0.03 | 12.0-14.0 | 0.60 |
| SUS420J2 | 0.36-0.45 | 1.00 | 1.00 | 0.04 | 0.03 | 12.5-14.5 | 0.60 |
4: DIN 1.4028 steel mechanical properties
The mechanical properties mainly include tensile strength, yield strength, elongation, area or reduction, hardness, impact value, non-metalic inclusion etc. Different heat treatment, the mechanical properties will be different, such as annealed, Solid Solution. If you want to know the properties, kindly contact the salesman.
5: DIN 1.4028 steel overviews
| Size | Round | Dia 0.1-500mm |
| Plate/Flat/Block | Thickness 0.3mm-200mm | |
| Width 1mm-2500mm | ||
| Heat treatment | Annealed ; Solid Solution | |
| Surface condition | Black; Peeled; Polished; Machined;Sand blast etc | |
| Delivery condition | Forged; Hot rolled; Cold drawn | |
| Test | Tensile strength, Yield strength, elongation, area of reduction, impact value, hardness, grain size, ultrasonic test, US inspection, magnetic particle testing, etc. | |
| Payment terms | T/T;L/C;/Money gram/ Paypal | |
| Trade terms | FOB; CIF; C&F; etc.. | |
| Delivery time | 30-45 days | |
| Application | 1.4028 is used to manufacture parts with high hardness and high wear resistance, such as hot oil pump shaft, hydraulic valve, valve seat, cylinder liner and spring, etc. It is also commonly used to manufacture measuring instruments and medical tools. | |
6: Delivery condition
For hot forged bar, usually the delivery condition is hot forged, annealed/solid solution, rough turned/Black surface.
For hot rolled bar, usually the delivery condition is hot rolled, annealed/solid solution, Black surface.
For hot rolled plate, usually the delivery condition is hot rolled, annealed/solid solution, black surface.
For cold drawn bar, usually the delivery condition is cold drawn, annealed/QT, peeled/black surface
We are professional manufacturer for many years. we can provide a wide range of steel products.
Usually bundling for large diameter,small diameter bars in bulk or as customer's demand.
The hardness after heat treatment is higher than D2/1.2379/Cr12Mo1V1, and can reach 61-63HRC after high-temperature tempering (525 ± 5 ℃); In terms of strength and wear resistance, it exceeds Cr12Mo1V1, and its toughness is higher than D2/1.2379/Cr12Mo1V1; The manufactured molds rarely have cracks and fissures, greatly improving their service life; The residual stress after wire cutting processing is smaller than that of Cr12Mo1V1; The cutting and grinding performance exceeds Cr12Mo1V1.
Suitable for manufacturing precision punching dies and stamping dies for cold forging, deep drawing, and wire rolling for wire cutting processing.
