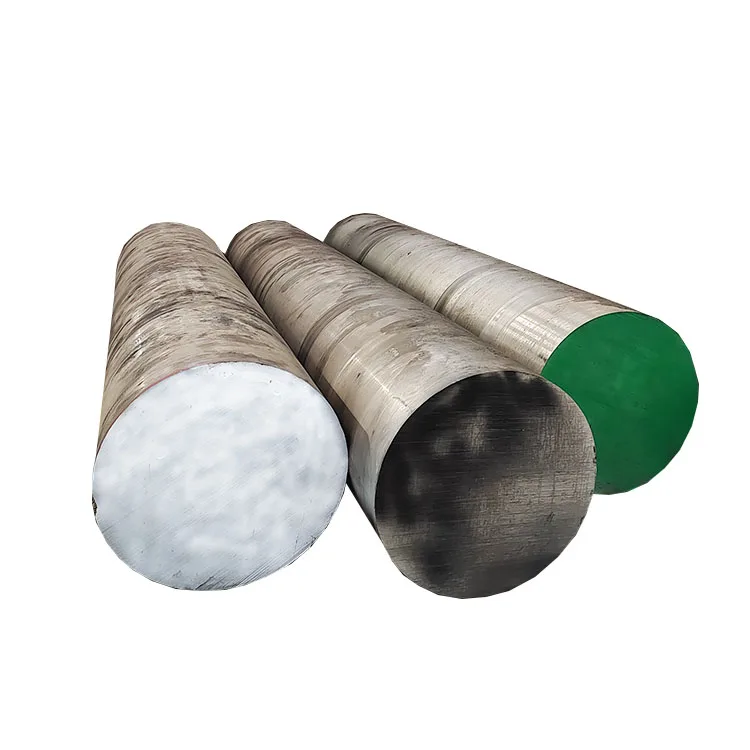

High Quality S136 1.2083 SUS420 4Cr13 Alloy Forged Steel Round Bar
1: DIN 1.2083 steel introduction
1.2083 Steel is typical Stainless Chrome Plastic Mold Steel. German die steel 1.2083 is a chromium content up to 13% of the plastic die steel. 1.2083 mold steel has good polishing and excellent wear resistance, is often used to prevent acid plastic mold. Special Steel China Supplier and factory -OTAI SPECIAL STEEL COMPANY supply 2083 steel in round bar, plate, flat bar, square, block and others any shape.
2: DIN 1.2083 Steel equivalent
| Country | China | Japan | Germany | USA | UK |
| Standard | GB/T 1299 | JIS G4404 | DIN EN ISO4957 | ASTM A681 | BS 4659 |
| Grade | 4Cr13 | SUS420J2 | 1.2083 | 415 | / |
3: DIN 1.2083 steel chemical composition
| Grade | C | Si | Mn | P | S | Cr |
| 420 Modified | ≤1.00 | ≤1.00 | 0.20~0.40 | 0.030 Max | 0.030 Max | 12.5~13.5 |
| 1.2083 | ≤1.00 | ≤1.00 | 0.20~0.40 | 0.030 Max | 0.030 Max | 12.5~13.5 |
| 4Cr13 | 0.35~0.45 | ≤0.60 | ≤0.80 | 0.030 Max | 0.030 Max | 12.0~14.0 |
| SUS420J2 | 0.26~0.40 | ≤1.00 | ≤1.00 | 0.030 Max | 0.030 Max | 12.0~14.0 |
4: DIN 1.2083 steel mechanical properties
The mechanical properties mainly include tensile strength, yield strength, elongation, area or reduction, hardness, impact value, non-metalic inclusion etc. Different heat treatment, the mechanical properties will be different, such as normalized, tempered, QT. If you want to know the properties, kindly contact the salesman.
5: DIN 1.2083 steel overviews
| Size | Round | Dia 6-1200mm |
| Plate/Flat/Block | Thickness 6mm-500mm | |
| Width 20mm-1000mm | ||
| Process | EAF+LF+VD+Forged+Heat treatment(optional) | |
| Heat treatment | Normalized ; Annealed ; Quenched ; Tempered | |
| Surface condition | Black; Peeled; Polished; Machined; Grinded; Turned; Milled | |
| Delivery condition | Forged; Hot rolled; Cold drawn | |
| Test | Tensile strength, Yield strength, elongation, area of reduction, impact value, hardness, grain size, ultrasonic test, US inspection, magnetic particle testing, etc. | |
| Payment terms | T/T;L/C;/Money gram/ Paypal | |
| Trade terms | FOB; CIF; C&F; etc.. | |
| Delivery time | 30-45 days | |
| Application | DIN 1.2083 is applicable for electric erosion operation, suitable for acid good polishing mold plastics and requirements. Mainly used in the production of PVC mold, wearability and filling the mold, including the hot hard type of plastic mold, long-life mold, such as: disposable tableware mold, optical components production, such as camera, and the sunglasses, medical containers and etc. | |
6: Delivery condition

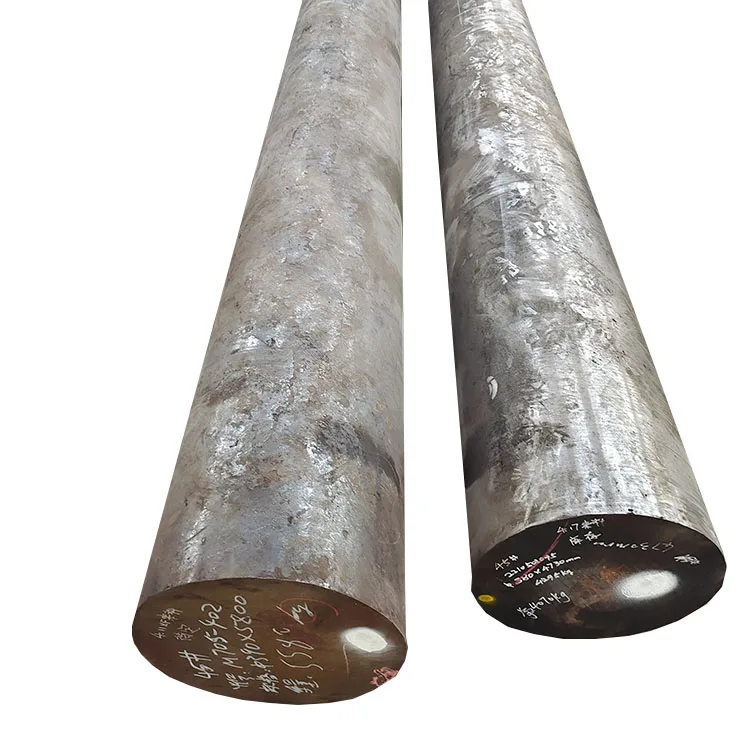

For hot forged bar, usually the delivery condition is hot forged, annealed/QT rough turned/Black surface.
For hot rolled bar, usually the delivery condition is hot rolled, annealed/QT, Black surface.
For hot forged plate, usually the delivery condition is hot forged, annealed/QT, milled surface.
For hot rolled plate, usually the delivery condition is hot rolled, annealed/QT, black surface.
7: Alloy Round Bar Tolerance
| Diameter(mm) | Tolerance | ||
| Forged Steel Round Bar | 80-600 | Black Surface:0~+5 | Rough Machined or Turned:0~+3 |
| 650-1200 | Black Surface:0~+15 | Rough Machined or Turned:0~+3 | |
| Hot Rolled Steel Round Bar | 16-310 | Black Surface:0~+1 | Peeled:H11 |
| Cold Drawn Steel Round Bar | 6-100 | Black Surface:H11 | Peeled:H11 |

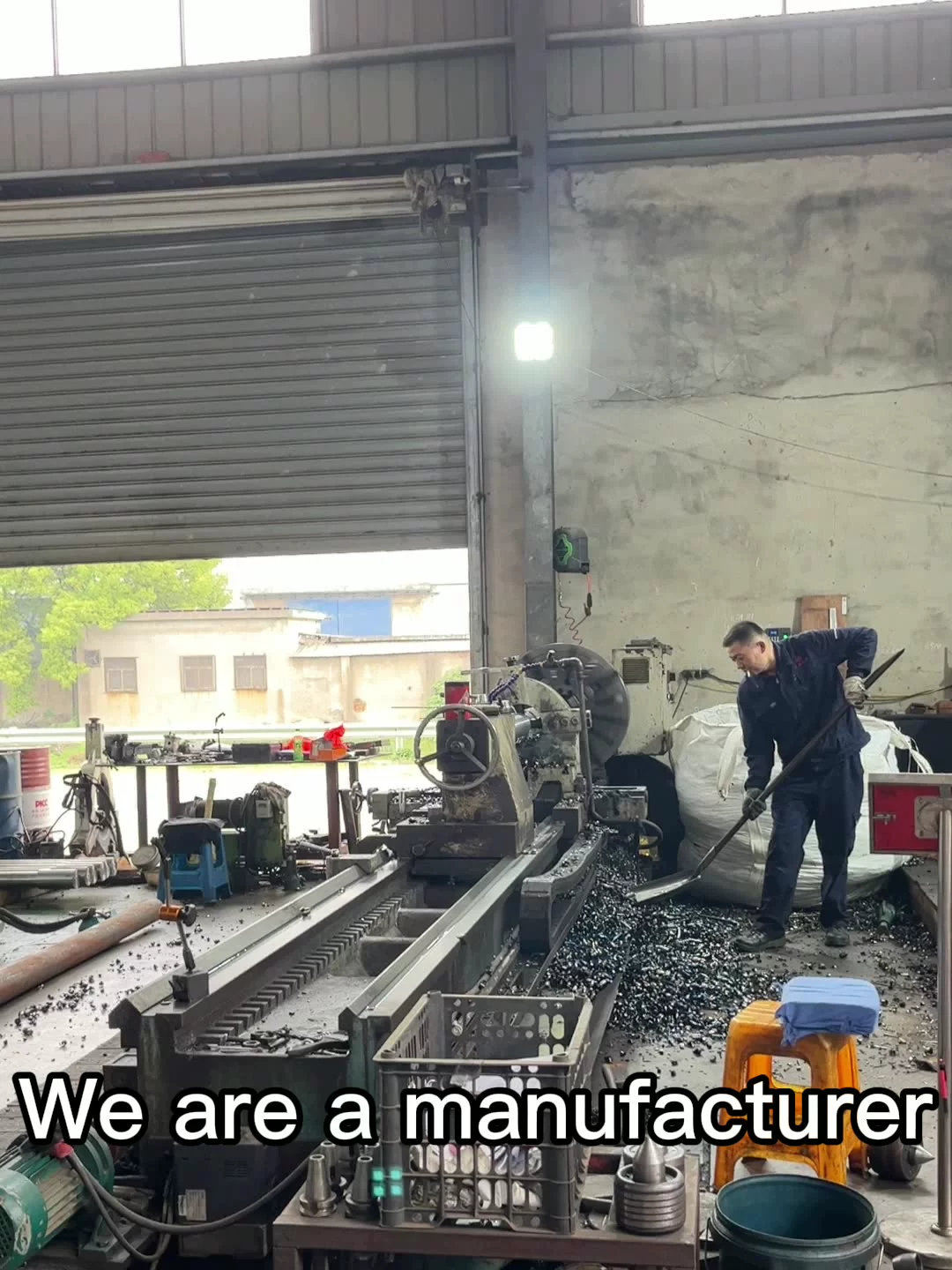

We are professional manufacturer for many years. we can provide a wide range of steel products.

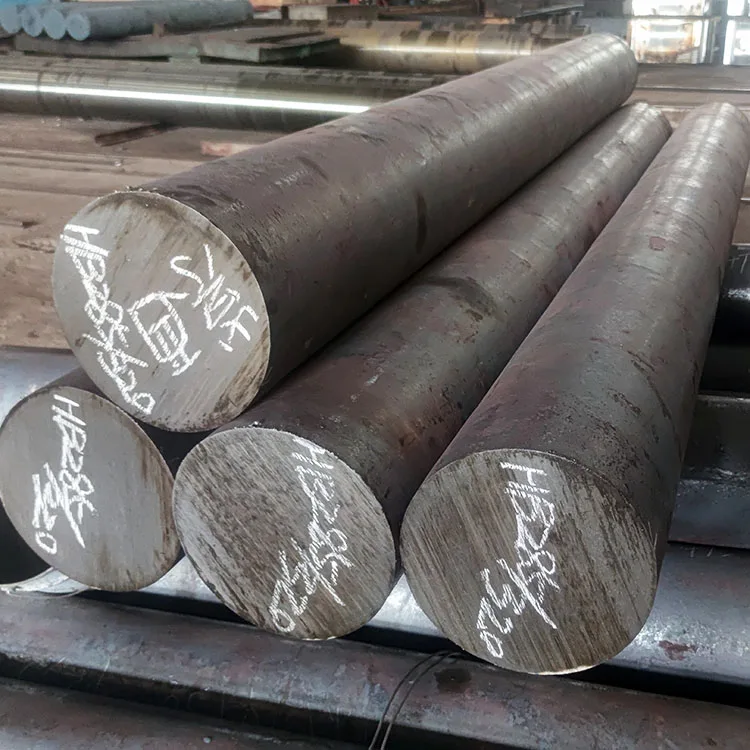

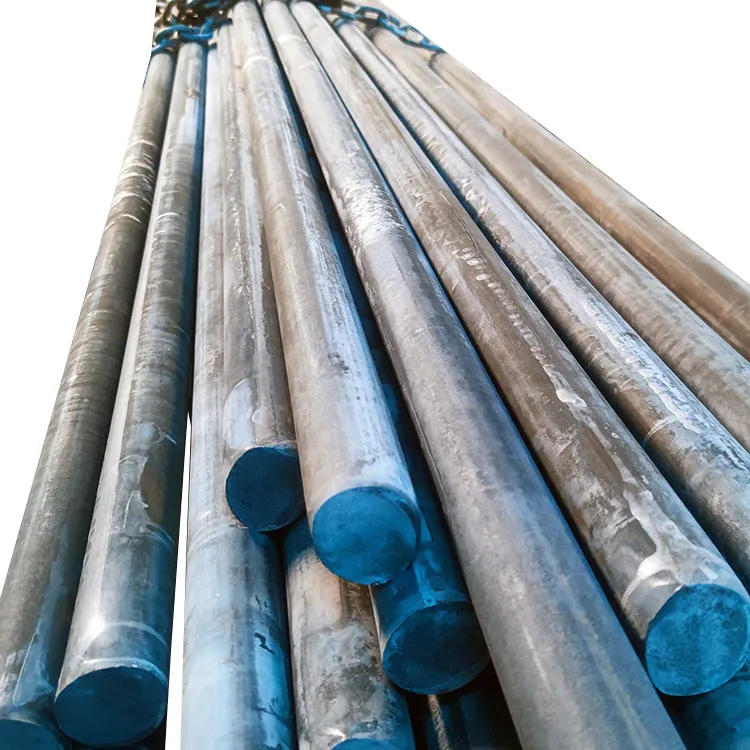

Usually bundling for large diameter,small diameter bars in bulk or as customer's demand.
The hardness after heat treatment is higher than D2/1.2379/Cr12Mo1V1, and can reach 61-63HRC after high-temperature tempering (525 ± 5 ℃); In terms of strength and wear resistance, it exceeds Cr12Mo1V1, and its toughness is higher than D2/1.2379/Cr12Mo1V1; The manufactured molds rarely have cracks and fissures, greatly improving their service life; The residual stress after wire cutting processing is smaller than that of Cr12Mo1V1; The cutting and grinding performance exceeds Cr12Mo1V1.
Suitable for manufacturing precision punching dies and stamping dies for cold forging, deep drawing, and wire rolling for wire cutting processing.
